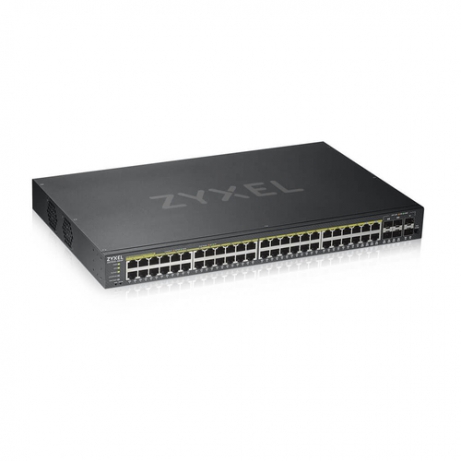

GS1920-48HPv2- 52 Port Smart Managed PoE Switch 48x Gigabit Copper PoE and 4x Gigabit dual pers.- hybrid mode- standalone or NebulaFlex Clou
ZYXEL SWITCH GS192048HPV2EU010
Enkel terugname bij defect
Toeslag indien levering
Levering binnen enkele dagen
Zyxel GS1920-48HPV2, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Zyxel GS1920-48HPV2. Switch type: Managed. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 44. MAC-adrestabel: 16000 entries, Switchingcapaciteit: 100 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE)
Poorten & interfaces
Vezel-optische connector
SFP
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
4
Poorten
44
Aantal moduleslots SPF
2
Gewicht en omvang
Diepte
270 mm
Hoogte
44 mm
Gewicht
4,1 kg
Breedte
441 mm
Energie
Vermogensverbruik (max)
474,3 W
AC-ingangsfrequentie
50 - 60 Hz
AC-ingangsspanning
100 - 240 V
Eisen aan de omgeving
Temperatuur bij opslag
-40 - 70 °C
Warmtedissipatie
1617,36 BTU/h
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Bedrijfstemperatuur (T-T)
0 - 50 °C
Luchtvochtigheid bij opslag
10 - 95 procent
Netwerk
VLAN=ondersteuning
Ja
Datastroombeheer
Ja
10G support
Nee
Virtuele LAN-functies
Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
Rate limiting
Ja
Spanning tree protocol
Ja
Koperen ethernetbekabelingstechnologie
100BASE-TX, 1000BASE-T
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data-uitwisseling
Verzending snelheid
74 Mpps
Packet buffergeheugen
1,5 MB
Switchingcapaciteit
100 Gbit/s
MAC-adrestabel
16000 entries
Verpakking
Rekbevestigingspakket
Ja
Diepte verpakking
355 mm
Breedte verpakking
616 mm
Gewicht verpakking
5,25 kg
Hoogte verpakking
107 mm
Meegeleverde kabels
AC
Beveiliging
Wachtwoordbeveiliging
Ja
CPU-bescherming
Ja
IGMP snooping
Ja
IP-MAC-Port binding
Ja
Access Control List (ACL)
Ja
MAC adres filtering
Ja
Algoritmen wachtrijplanning
SPQ, WFQ, Weighted Round Robin (WRR)
Authenticatie
Gast-VLAN, Poortgebaseerde authenticatie
Authenticatie type
IEEE 802.1x, RADIUS
DHCP-functies
DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SNMP, SNMPv3
Beheerfuncties
Switch type
Managed
System event log
Ja
ARP-inspectie
Ja
Quality of Service (QoS)
Ja
MIB-ondersteuning
RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
Optische vezel
Fiber ethernet cabling technologie
1000BASE-X
Design
Veiligheid
LVD, BSMI
Rack-montage
Nee
Kleur
Zwart
Certificering
RoHS
Elektromagnetische compatibiliteit
FCC 15 A, CE A, BSMI EMC
Power over Ethernet (PoE)
Totaal Power over Ethernet (PoE)-budget
375 W
Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
48
Prestatie
Intern geheugen
256 MB
Flash memory
32 MB
Geluidsniveau
26,5 dB
Mean time between failures (MTBF)
502509 uur
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Multicast-functies
Multicast-ondersteuning
Ja
